Updated:
18 December 2008

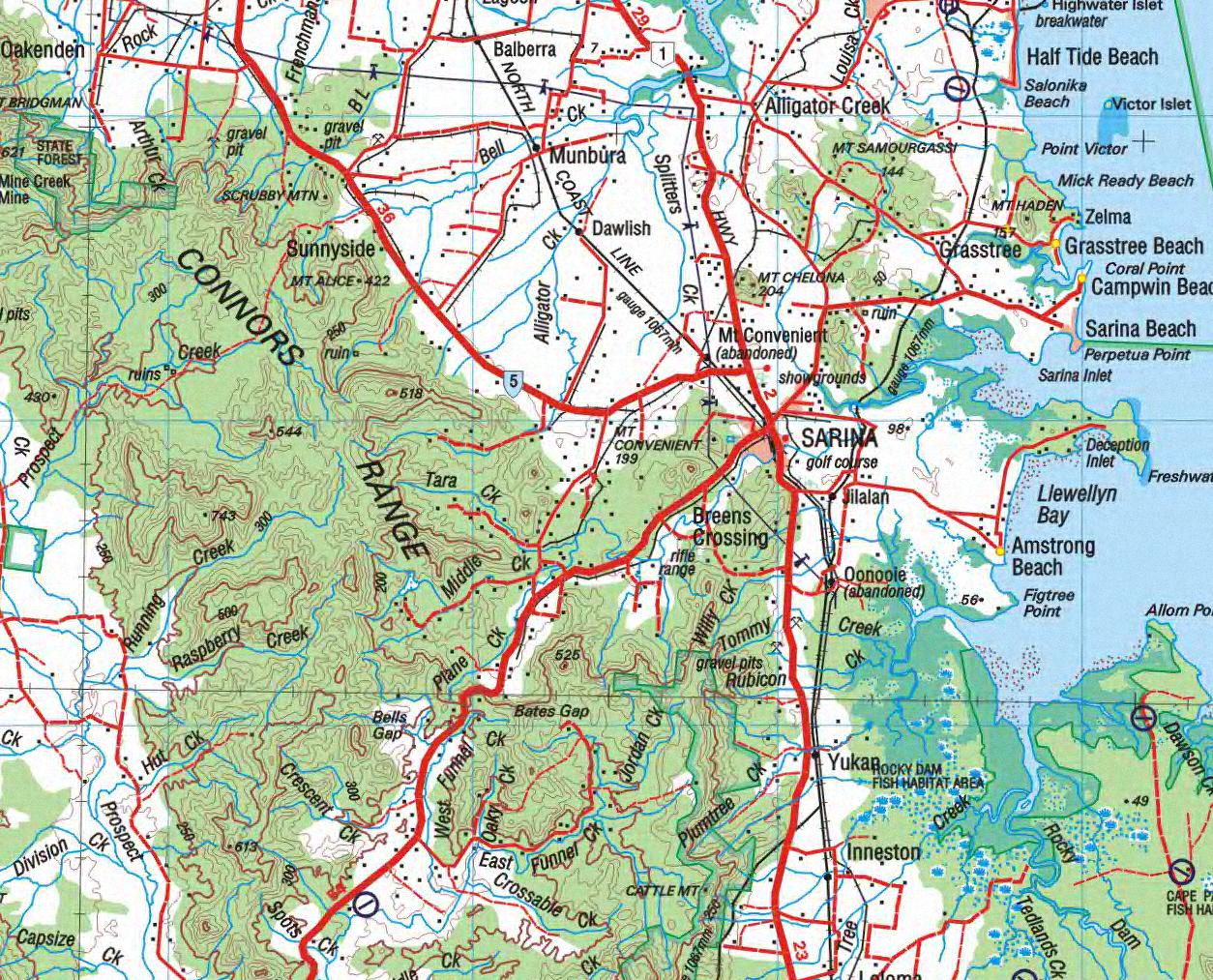

1:250 000 Scale NATMAPSThis series covers the whole of Australia at a scale of 1:250 000 (1cm on a map represents 2.5 km on the ground) and comprises 513 maps. This is the largest scale at which published topographic maps cover the entire continent. Each standard map covers an area of 1.5 degrees longitude by 1 degree latitude or about 150 kilometres from east to west and 110 kilometres from north to south. There are about 50 special maps in the series and these maps cover a non-standard area. Typically, where a map produced on standard sheet lines is largely ocean it is combined with its landward neighbour. These maps contain natural and constructed features including road and rail infrastructure, vegetation, hydrography, contours (interval 50m), localities and some administrative boundaries. Some maps are supplemented by relief shading. The topographic map and data index shows coverage of the sheets. Product SpecificationsCoverage: Upon completion of revision the series will cover the whole of Australia with
513 maps. |
|
