Australia now has a full suite of new gravity grids at the national scale, being the first publically released since 2011.

Australia now has a full suite of new gravity grids at the national scale, being the first publically released since 2011. The new gravity data adds to the arsenal of products available from Geoscience Australia for exploration purposes.

In the last seven years, over 400,000 gravity observations obtained by Commonwealth, State and Territory governments have been added to Geoscience  Australia's database. The availability of gravity data such as the new grids creates a significant efficiency improvement for explorers in Australia and abroad which helps to stimulate exploration activity.

In producing the new national gravity grids a gap analysis was conducted which highlighted areas with low coverage and low quality data.  Identifying these regions helped target priority areas for data acquisition under the Exploring for the Future programme.

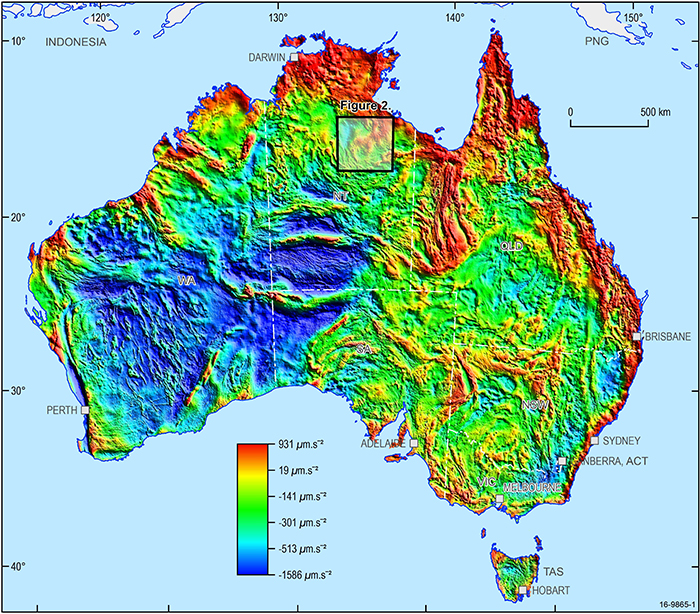

The Bouguer Gravity Anomaly Grid
of Australia shows the density
distribution of the continent and is
a key dataset for minerals and
energy exploration.

Gravity anomaly grids such as these provide an indication of the variation in the density of rocks across the nation and are an essential tool aiding minerals and energy exploration. Mapping the distribution and patterns of rock density in this way allow geoscientists to map Australia's subsurface geology.

Gravity data are one of the main tools used in exploring under sediment cover, which is one of the primary challenges facing minerals exploration globally. The data can be used to create 3D models of the subsurface, providing a better understanding of the structure and geological setting of the nation. Fundamental datasets such as gravity help improve the understanding of the composition and structure of the continent. This information contributes to the assessment of geological structure and mineral  potential, paving the way for further exploration for mineral and energy resources.

Minerals and energy explorers can obtain these datasets online for free via the Geophysical Archive Data Delivery System, as well as importing directly to GIS software through web map services.

The new datasets are generated from data stored in the Australian National Gravity Database; and include the Bouguer Gravity Anomaly Grid, Complete Bouguer Gravity Anomaly Grid and the Isostatic Residual Gravity Anomaly Grid. The Bouguer Gravity Anomaly grid shows the difference between the expected gravity response from a uniform Earth and the measured local gravity, taking into account elevation and crustal density.

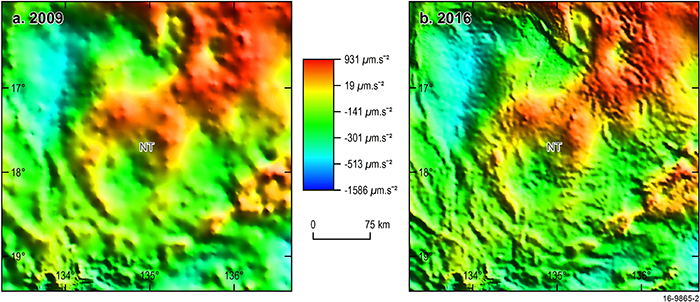

The 2009 Bouguer anomaly grid (a)
compared with the 2016 Bouguer
anomaly grid (b) shows substantial
data improvement from recent
data acquisition. This data was
collected in the McArthur region
in the Northern Territory.

The Complete Bouguer Gravity Anomaly Grid has had a terrain correction applied which removes the gravity effect of nearby topography variation. The Isostatic Residual Gravity Anomaly Grid has assumed the Airy model of isostasy and removed the gravity contribution from a varying thickness of crust. The result is a map which reveals more clearly the density distributions of geological interest within the upper crust.

Geoscience Australia is proud to participate in the 25th International Geophysical Conference and Exhibition to being held in Adelaide from August 21-24. The conference is being jointly hosted by the Australian Society of Exploration Geophysicists (ASEG), Petroleum Exploration Society of Australia (PESA) and the Australian Institute of Geoscientists (AIG). To access Geoscience Australia's relevant data and publications from the conference, please see the geophysics online data page.
