Bonaparte Basin
Page last updated:29 August 2023
Note: refer to the Acreage Release basins page for updated information on the Bonaparte Basin.
Basin Details and Geological Overview
The Bonaparte Basin consists of the following structural elements: Ashmore Platform, Vulcan Sub-basin, Londonderry High, Petrel Sub-basin, Darwin Shelf, Malita Graben, Sahul Syncline Nancar Trough, Laminaria High, Flamingo High, Flamingo Syncline, Sahul Platform,Sahul Syncline, Troubadour Terrace, Calder Graben.
The Cambrian to Recent Bonaparte Basin is a fan-shaped hydrocarbon-bearing basin extending over 270 000km2 in the northwestern offshore and onshore Australia. The basin contains up to 15km of sediments and has a multi-phase history, comprising the southern Palaeozoic and northern Mesozoic depocentres. The latter forms part of the Westralian Super-basin.
The Bonaparte Basin had produced 11 GL of oil to end-2000 but only 0.11 BCM of gas due mainly to market limitations. Remaining known reserves are 33.42 GL of oil and 668.55 BCM of gas.
The basin developed during two phases of Palaeozoic extension and Late Triassic compression prior to the onset of Mesozoic extension. Initial rifting occurred in the Late Devonian (NW-trending Petrel Sub-basin) and was orthogonally overprinted in the Late Carboniferous to Early Permian by NE-trending rift basins (proto-Malita and proto-Vulcan depocentres). Regional N-S compression in the Late Triassic resulted in widespread uplift and erosion, and, together with salt tectonics, produced inversion structures and anticlines in the Petrel Sub-basin. Erosion and collapse of these uplifted areas led to the widespread deposition of Lower-Middle Jurassic 'redbeds' and fluvio-deltaic clastics. Late Jurassic extension resulted in a series of linked, NE-trending (Vulcan Sub-basin, Malita and Calder Grabens) and SE-trending (Sahul Syncline) intracontinental grabens.
The Jurassic depocentres contain thick marine mudstones flanked by fan delta sandstones. A thick post-rift Cretaceous-Tertiary succession is dominated by fine-grained clastic and carbonate facies. Late Miocene-Pliocene convergence of the Australian and Eurasian plates resulted in flexural downwarp of the Timor Trough and widespread reactivation of the previous extensional fault systems.
The most prospective part of the Bonaparte Basin includes the Vulcan Sub-basin, Laminaria-Flamingo High and northern Sahul Platform. Oils in the basin are normally very light. The Late Jurassic marine section is the major source interval in the outboard grabens, together with Middle-Lower Jurassic marine shales and coastal plain coals. In the Petrel Sub-basin the main sources are postulated Lower Carboniferous marine shales and Permian coastal plain coals and pro-delta shales. Reservoirs range in age from Carboniferous-Permian in the Petrel Sub-basin and Londonderry High, Triassic to Cretaceous in the Vulcan Sub-basin and Jurassic in the northern parts of the basin. Fault seal breach is one of the main risks in the western part of the basin.
Regional Cross-sections
Petrel Sub-basin
The Petrel Sub-basin is an asymmetric, northwest-southeast trending Palaeozoic rift in the southeast portion of the Bonaparte Basin and contains mostly Palaeozoic and Mesozoic sediments.
Stratigraphic units dip regionally to the northwest about a northwest-plunging synclinal axis, resulting in exposure of lower Palaeozoic strata in the southern onshore area and in progressive subcropping of upper Palaeozoic to Tertiary strata offshore beneath Quaternary sediments.
These Phanerozoic formations exceed 15 km in thickness in the northern central Petrel Sub-basin.
Vulcan Sub-basin
The Vulcan Sub-basin is a northeast-southwest trending Mesozoic extensional depocentre in the western Bonaparte Basin and comprises a complex series of horsts, grabens and terraces. The Vulcan Sub-basin developed as an intra-continental graben in the late Callovian and structuring continued through to the Tithonian.
Petroleum Systems and Hydrocarbon Potential
Geochemical data from oils, condensates and gases have been used to characterise the hydrocarbon families in the Bonaparte Basin and to correlate them with likely source rocks. These studies have identified two Palaeozoic and seven Mesozoic oil families in the Bonaparte and Browse basins.
Jurassic Systems
Based on these oil families and the distribution of hydrocarbon shows, source rock data and geohistory modelling, seven Petroleum Systems have been formally defined and mapped within the Bonaparte Basin.
- Vulcan-Plover (!) Petroleum System, Vulcan Sub-basin
- Elang-Elang (!) Petroleum System, Sahul Syncline and Flamingo High
- Plover-Plover (.) Petroleum System, Malita Graben and Sahul Platform
Permian System
- Hyland Bay-Hyland Bay (?) Petroleum System, Kelp High
- Permian-Hyland Bay (?) Petroleum System, Londonderry High
- Hyland Bay/Keyling-Hyland Bay (.) Petroleum System, Central Petrel Sub-basin
Permo-Carboniferous
- Milligans-Kuriyippi/Milligans (!) Petroleum System

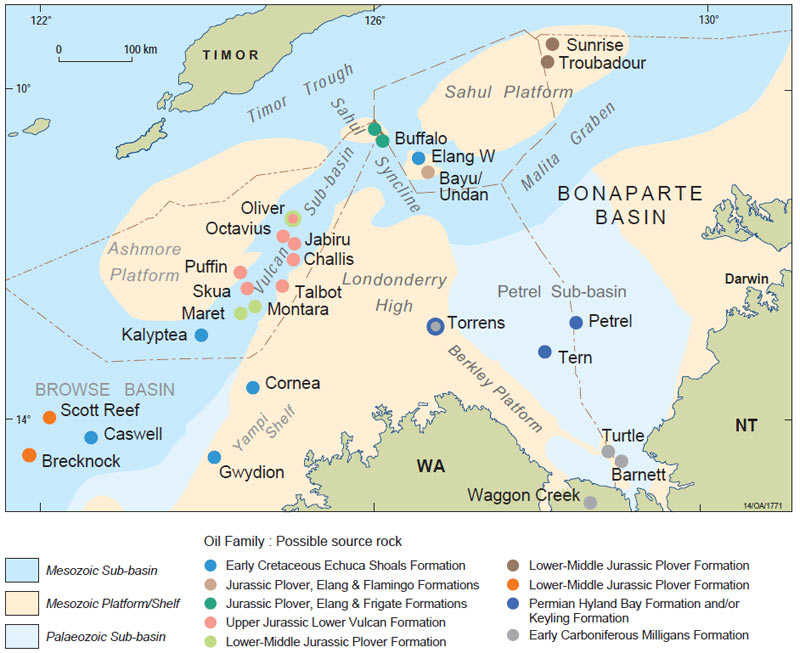

Diagram of the Bonaparte Basin showing well locations, sub-basins and other structures
